Output Results Window
The Output Window is located on a tab the Results Window and displays Hex Workshop diagnostics information. By default, the output window includes the last 16K of output information. Output Information ranges for Hex Workshop diagnostics and debugging information to errors and warning found in user-defined structure definitions, color map definitions, and bookmark collections.

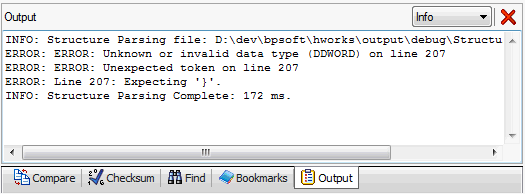

In the example below, Hex Workshop is reporting an error parsing a unknown data type "DDWORD" on Line 207 of a structure definition.
The output level can be adjusted by selecting a new level in the drop-down box ("Info" is selected in the above example). Users must select a new output level prior to performing an operation to view more information. Output Levels include Debug, Info, Warn, and Error.
The Red "X" button clears the Output Results Window.
